1998 Hatteras 70 Sport Deck Motor Yacht

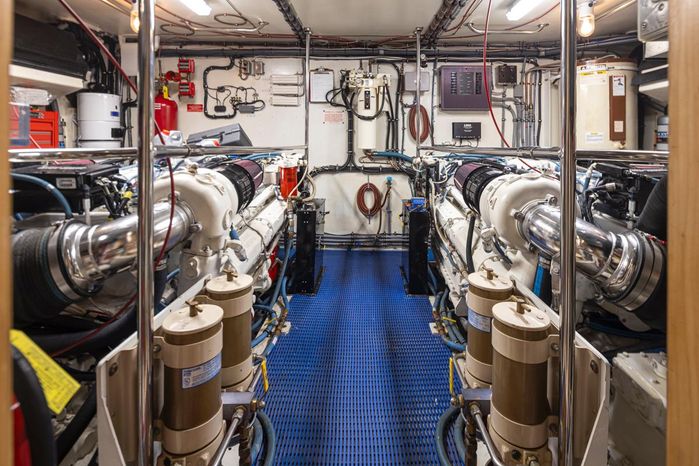

ENGINES:

• COMPLETE REBUILD OF BOTH ENGINES PERFORMED IN 2020 (Receipts Available) - with less than 100 hours!
• ENGINE QUANTITY: 2
• FUEL TYPE: Diesel
• DESCRIPTION: V12 Cylinder / Turbocharged & Aftercooled
• MAKE / MODEL: Detroit Diesel / 12V-92TA-DDEC
• RATED POWER: 1110 HP @ 2300 RPM
• CRUISE SPEED: Approx. 13 Knots @ 1500 RPM
• WOT SPEED (WIDE OPEN THROTTLE): Approx. 2300 RPM
• DISPLACEMENT: 18.10 L
• COOLING: Fresh Water Cooling
• EXHAUST: Wet Exhaust System

TRANSMISSIONS:

• DESCRIPTION: Straight-Drive Reduction Gear Transmission
• MAKE / MODEL: ZF Marine / BW255
• GEAR RATION: 3.45 : 1

RUNNING GEAR:

• PROP TYPE: 5 Blade Bronze
• PROP SIZE: Diameter 44 Inches by Pitch 55 Inches
• PROP ROTATION: Counter Rotating / Rotation Outboard
• SHAFT TYPE: 3 1/2 Stainless Steel
• SHAFT SEAL TYPE: Stuffing Box Typ Shaft Seal System

ELECTRIC BOW THRUSTER:

•  DESCRIPTION: Electric Bow Thruster System
• MAKE / MODEL: SidePower / 24Volt DC

HYDRAULIC STABILIZERS:

• DESCRIPTION: Hydraulic Roll Stabilizer System
• MAKE: Naiad Marine

GENERATOR SYSTEM:

• Forward Generator:
• FUEL TYPE: Diesel

• MAKE / MODEL: Onan Marine GenSet / 20MDKAE

• POWER OUTPUT: 20.0KW 120/240VAC 60Hz / 24VDC Start Voltage
• Aft Generator:
• FUEL TYPE: Diesel
• MAKE / MODEL:Onan Marine GenSet / 20MDKAE

• POWER OUTPUT: 20.0KW 120/240VAC 60Hz / 24VDC Start Voltage


DC POWER SYSTEM:

• SYSTEM VOLTAGE: 12VDC & 24VDC
• BATTERY QUANTITY: 8 TOTAL
• 24V to 12V CONVERTER: QTY 1 / VANNER VoltMaster Battery Equalizer

DC BATTERY DETAILS:

• 24V PORT START: 12V Dyno Group 8D Flooded Cell Lead Acid 255AH @ 20Hr 2 2018
• 24V STARBOARD START: 12V Dyno Group 8D Flooded Cell Lead Acid 255AH @ 20Hr 2 2018
• (4) 24V HOUSE: 12V Universal Battery Group 8D Sealed AGM 250AH @20Hr

AC POWER SYSTEM:

• SYSTEM VOLTAGE: 120/240VAC 60Hz
• SHORE POWER CABLE: (QTY 2) 50A 125/250V Glendinning CableMaster Shore Power Cable
• INLET RECEPTACLE: (QTY 2) 50A 125/250V HUBBELL Shore Power Inlet Receptacle
• DISTRIBUTION: 120/240VAC Circuit Breaker Panels
• TRANSFORMER: (QTY 2) MagneTek 15KVA 120/240VAC 60Hz

BATTERY CHARGER & POWER INVERTER:

• BATTERY CHARGER: Dytek Marine Battery Charger 50 Amp 24VDC
• CHARGER & INVERTER: Heart Interface Freedom 25 125 Amp 24VDC 2500 Watt 120VAC

• AUTOPILOT SYSTEM: Robertson AP300X Autopilot Electronics
• RADAR:  Furuno 12VDC
• GPS CHART / DEPTH / RADAR: Furuno NAVnet 12VDC
• GPS CHARTPLOTTER: Northstar 951X 12VDC
• GPS RECEIVER: Furuno GP-32 12VDC
• DIGITAL DEPTH: Link Depth 12VDC
• SPEED THRU WATER: Link Depth 12VDC
• COMPUTER MONITOR: Dell
• NAVIGATION COMPUTER: Dell PC with TIMEZERO 120VC
• VIDEO CAMERA SYSTEM: ELBEX CCTV System 24VDC
• VHF RADIO: ICOM 12VDC
• MAGNETIC COMPASS: Ritchie Powerdamp

TENDER:

• DESCRIPTION: RIB / Ridged Inflatable with Fiberglass Hull Bottom / Outboard Engine Propulsion
• MAKE / MODEL Novurania

OUTBOARD ENGINE:

• DESCRIPTION 4-Stroke Outboard Engine / 50 HP / Gasoline Fuel
• MAKE / MODEL: Yamaha / F50TLRV

DAVIT SYSTEM:

• DESCRIPTION: Flybridge Mounted Crane David System / 120VAC Electric Winch Motor
• MAKE: MarQuipt

GROUND TACKLE:

• ANCHOR WINDLASS WINCH: Maxwell electric deck winch, 24VDC
• ANCHOR DESCRIPTION: Stainless Steel Plow Type Anchor
• ANCHOR CHAIN & RODE: Galvanized Steel Chain

FUEL SYSTEM:

• FUEL TYPE: Diesel
• FUEL TANK DESCRIPTION: Four (4) fiberglass fuel tanks located Forward, Forward Mid, Aft Mid and Aft
• FUEL CAPACITY: 1590 Gallons Total, Forward 210 Gallons, Forward Mid 525 Gallons, Aft Mid 645 Gallons and Aft 210 Gallons
• TANK LEVEL GAUGE: Four (4) 24VDC Analog Gauges
• MAIN ENGINE FUEL FILTER: Four (4) Racor 1000
• GENERATOR FUEL FILTER: Two (2) Racor 900

FRESH WATER SYSTEM:

• FRESH WATER TANK DETAILS: One (1) Fiberglass tank located Aft Bilge
• WATER CAPACITY: 345 Gallons
• TANK LEVEL GAUGE: Two (2) 24VDC Analog Gauges
• ELECTRIC WATER PUMPS:  24VDC Electric Paragon Water Pressure Pump and 24VDC Electric Water Pressure Pump
• ELECTRIC WATER HEATER: AO Smith 240VDC 40 Gallons
• WATER MAKER SYSTEM: HRO Systems 240VDC

BLACK WATER SYSTEM:

• DESCRIPTION: USCG Approved Type III Marine Sanitation Device (MSD) / Black Water Holding Tank System
• TANK DETAILS: One (1) Fiberglass tank located in Forward Bilge
• BLACK WATER CAPACITY: 180 Gallons


• GALLEY FRIDGE & FREEZER: Kitchen Aid (120VAC)
• GALLEY STOVETOP & OVEN: Whirlpool (240VAC)
• MICROWAVE: Sharp (120VAC)
• DISH WASHER: Whirlpool (120VAC)
• TRASH COMPACTOR: Whirlpool (120VAC)
• GALLEY SINK DISPOSAL: In-Sink-Erator (120VAC)
• HVAC HEAT & AIR: seven (7) Cruisair units (240VAC)
• ICE MAKER: GE (120VAC)
• WASHER / DRYER: Whirlpool (240VAC)
• VACUUM: NuTone (120VAC)


This expansive space is sure to be a favorite with its complete enclosure, full helm station and abundant seating roomy enough for all of the friends and family you want aboard.  She is accessed via stairs from the pilothouse and is a great place while cruising or at the dock.

• Full enclosure
• Complete helm station with engine controls, gauges and electronics
• Duel helm chairs
• Expansive U-shaped seating with under seat stowage
• Dual cocktail tables
• Access to boat deck with davit and tender

The staterooms on this vessel prove nothing short of extraordinary and every guest from the Admiral to the Crew will have nothing short of a five star experience with the opulent appointments this find vessel offers.

The Owner's Suite offers a supreme sense of privacy as it is the only shared stateroom access from a separate staircase that descends from the salon.  this space is as roomy as it is plush, offering a true King sized berth with dueling head compartments sharing a lavish shower with a jetted tub jacuzzi.

The stairs headed downward from the pilothouse area lead you to a companionway that accesses all three guest staterooms and their respective heads.  The Washer and Dryer units are conveniently located in this area, allowing all guests access to this amenity.

Each of the five (yes: FIVE) toilets in this vessel have been updated to fresh water flush systems with upgraded PEX tubing (done in 2020).

OWNER'S SUITE / PRIMARY STATEROOM:

• Located aft, with private entrance accessed via spiral staircase from the main salon
• Centerline King berth with complete walk-around
• Port and starboard built-in dressers
• Walk-in closet
• Built-in desk with drawers and overhead entertainment cabinet
• Ensuite access to separate "His and Hers" head compartments with shared shower / jacuzzi tub
• Access to engine room (forward of stateroom)

OWNER'S SUITE / PRIMARY HEAD:

•  Port side head compartment:

• Dometic fresh water flush marine toilet (new 2020)
• Built-in sink with vanity (with behind mirror storage)
• Under sink stowage
• Access to shared shower / jetted jacuzzi tub
• Starboard side head compartment:
• Dometic fresh water flush marine toilet (new 2020)
• Built-in sink with vanity (with behind mirror storage)
• Under sink stowage
• Access to shared shower / jetted jacuzzi tub

VIP STATEROOM:

• Located amidship to port
• Walk-around Queen berth
• Built in dresser with drawer storage
• Hanging closet
• Ensuite access to VIP HEAD

VIP HEAD:

• Accessed via VIP Stateroom
• Vanity with molded sink (with behind mirror storage)
• Under sink stowage
• Separate shower stall with jacuzzi tub

BUNK STATEROOM / CREW'S QUARTERS:

• Located forward to port
• Over-under twin bunks
• Under berth drawers
• Ensuite access to Bunk/Crew Head

BUNK / CREW HEAD:

• Accessed via Bunk Stateroom
• Electric fresh water flush marine toilet (new 2020)
• Molded sink with vanity (with behind mirror storage)
• Under sink stowage
• Separate shower stall

FORWARD GUEST STATEROOM:

• Located forward in the bow
• Centerline Queen berth with easy access on both sides
• Under berth stowage drawers
• Port and starboard two-drawer dressers

FORWARD GUEST HEAD:

• Located at the base of the staircase coming from the Pilothouse, across from Bunk Stateroom and adjacent to the Forward Guest Stateroom
• Electric fresh water flush marine toilet (new 2020)
• Molded sink with vanity (with behind mirror storage)
• Under sink stowage
• Separate shower stall

Situated in the perfect location, the galley sits just forward of the salon, and aft of the pilothouse.  Across from the large U-shaped space is a great dining banquette, perfect for morning coffee, an afternoon snack or hosting a large spread for numerous guests.  She is equipped with full sized appliances and Chefs of any caliber will enjoy the immense counter space in this area.

• Full sized Kitchen Aid refrigerator / freezer
• Whirlpool electric stove and oven
• Sharp Microwave
• Whirlpool dish washer
• Whirlpool trash compactor
• In-Sink-Erator sink disposal
• Deep sink with faucet
• Abundant stowage

This full beam salon is the core definition of luxury with room for dining, entertaining and relaxing on the water.  Her large windows add an abundance of natural light contributing to the expansive feel of this space. She offers a large L-shaped settee, two leather chairs, dining table, entertainment center, bar area and a private staircase that descend to the Owner's Suite.

• Large L-shaped custom settee
• Two (2) leather lounge chairs
• Dining table
• Built-in bar
• Entertainment center
• Private staircase to Owner's Suite
